MLR - 8W full-automatic microcomputer calorimeter

Harmonized System:9025800090

MLR - 8W full-automatic microcomputer calorimeter is calorific value of measurement instruments,combustible mainly used for solid and liquid fuel,such as coal,oil,food,lumber,explosive substances such as heat. The instrument has high accuracy,easy to operate,reliable operation of the new energy analysis instrument. To achieve automatic control,automatic measurement circuit are connected to judge the ignition,automatic

Microcomputer automatic calorimeter is controlled by a standard personnel computer, maintains all functions of the computer and can be used with various common softwares. Other functional boards can be inserted into an expansion slot of the computer. The calorimeter can be used for calibrating heat capacity (energy equivalent) of the calorimeter system automatically and measuring calorific value thereof. Calorific value of determination in oxygen bomb, gross calorific value and net calorific value, and the like can be calculated and printed by inputting sulfur, moisture and hydrogen, etc.

The heat system calibration,Cartridge for the calorific value of coal calculation and the calorific value of the conversion from computer operator according to the input of known Sweet,hydrogen content and moisture content automatically.

Functional Characteristics:

1.Microcomputer automatic calorimeter is controlled by a standard personnel computer, maintains all functions of the computer and can be used with various common softwares. Other functional boards can be inserted into an expansion slot of the computer. The calorimeter can be used for calibrating heat capacity (energy equivalent) of the calorimeter system automatically and measuring calorific value thereof. Calorific value of determination in oxygen bomb, gross calorific value and net calorific value, and the like can be calculated and printed by inputting sulfur, moisture and hydrogen, etc.
2. An internal cylinder of the isothermal calorimeter is stirred electrically by a platy blade, while an external cylinder is stirred by a circulating pump, so that the water temperature is more uniform. In virtue of the water filling nozzle, pumping port and automatic water temperature adjusting part, the operation is simpler and more convenient. The instrument can be ignited in fusing or non-fusing manner, being convenient to use.

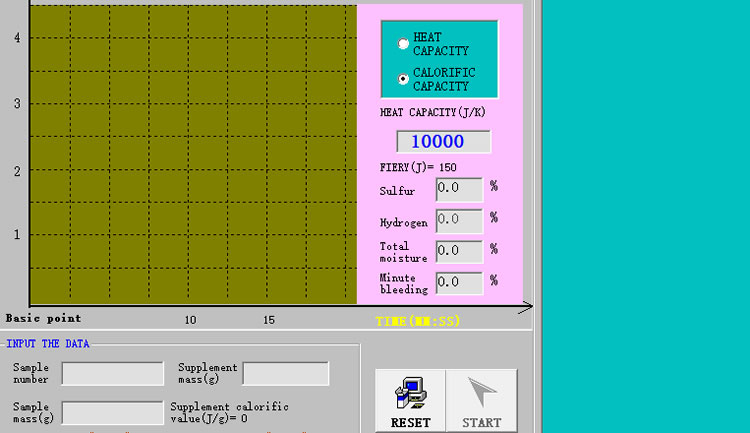

3. Calorimeter is operated on a WIN2000 operating system, ensuring safety and stability of the softwares. It enables the user to modify the data while controlling and to manage reports or do other jobs during test, facilitating the user and realizing multifunction actually.
4. Whole operation process of the system is indicated by characters and the test can be finished through following the prompts.

Technical Parameters:

1.Heat capacity (energy equivalent): About 10,450J/K
2.Volume of external cylinder: 30 L
3.Volume of internal cylinder: About 2.3 L
4. Ignition voltage: 24V
5.Ignition time: 6 min
6. Accuracy of measurement: Suitable for international GB/T213-2008
7.Temperature resolution: 0.001℃
8.Operating environment: 10-30℃(room temperature change of each time shall be less than or equal to 1℃, and relative humidity shall be less than or equal to 85%.)
9.Power supply: AC220V±10%,frequency 50Hz
10. Automatically adjust the temperature outside cylinder
11. Automatic water,quantitative error: ± 1g

Microcomputer automatic calorimeter

Microcomputer Automatic Calorimeter Relevant link:

MLR - 8C full-automatic calorimeter

ZNLRY - 2000 intelligent calorimeter
